A cash drawer is an essential part of your POS hardware, especially for businesses that regularly handle cash transactions. From retail stores to cafes and food stalls, having a well-integrated, secure cash drawer ensures faster checkouts, accurate cash handling, and better organization at the counter. Whether you’re using a manual or electronic model, proper setup improves both operational efficiency and security. This guide will walk you through the various types of cash drawers, how they work with your POS system , and the exact steps to install, configure, and maintain one for smooth, reliable daily transactions.
Types of Cash Drawers
Choosing the right cash drawer is essential for smooth POS operations. Each type serves different business needs, from manual setups to automated, printer-driven solutions. Understanding how each model works helps you make the best choice for your transaction volume, software compatibility, and overall workflow.
Manual Cash Drawer
- Operates using a physical key, requiring no digital integration.
- No electrical or software connection needed, making it simple and cost-effective.
- Ideal for businesses with minimal transaction volume or no integrated POS setup
Electronic (POS-Connected) Cash Drawer
- Plugs into the POS terminal using a USB or serial connection, allowing for direct communication and seamless integration with your system
- Automatically triggers the drawer to open after a successful cash transaction, ensuring faster checkouts and fewer manual steps for staff
- Helps streamline operations by syncing with POS software to record each cash movement, improving accuracy and reducing risk of loss.
Printer-Driven Cash Drawer
- Printer-driven cash drawers use RJ11 or RJ12 cables to connect directly to the receipt printer, enabling automatic opening after transactions.
- Once a sale is completed and a receipt is printed, the cash drawer opens instantly—eliminating the need for manual operation.
- These cash drawers are widely used in retail setups where thermal printers are standard, offering fast, efficient, and integrated cash handling.
Step-by-Step Setup Process
1. Unbox and Place the Cash Drawer
Select a secure, ergonomic location beneath or beside the POS terminal.
Ensure it’s easily accessible for the cashier but out of customer reach to maintain security.
2. Connect the Cash Drawer to the POS System
For Electronic Drawers:
- Use an RJ11 or RJ12 cable to link the drawer to the receipt printer or POS terminal.
- If your model is USB-powered, plug it directly into the USB port on your POS computer.
For Manual Drawers:
- No cable or integration is needed—just use a key to open and close the drawer.
3. Configure the POS Software
- Open your POS software settings and navigate to Hardware Settings or Cash Drawer Configuration.
- Select the correct connection type: USB, Printer-driven, or Direct.
- Enable “Auto Open Cash Drawer” when a cash payment is made.
- Save your settings and test the functionality.

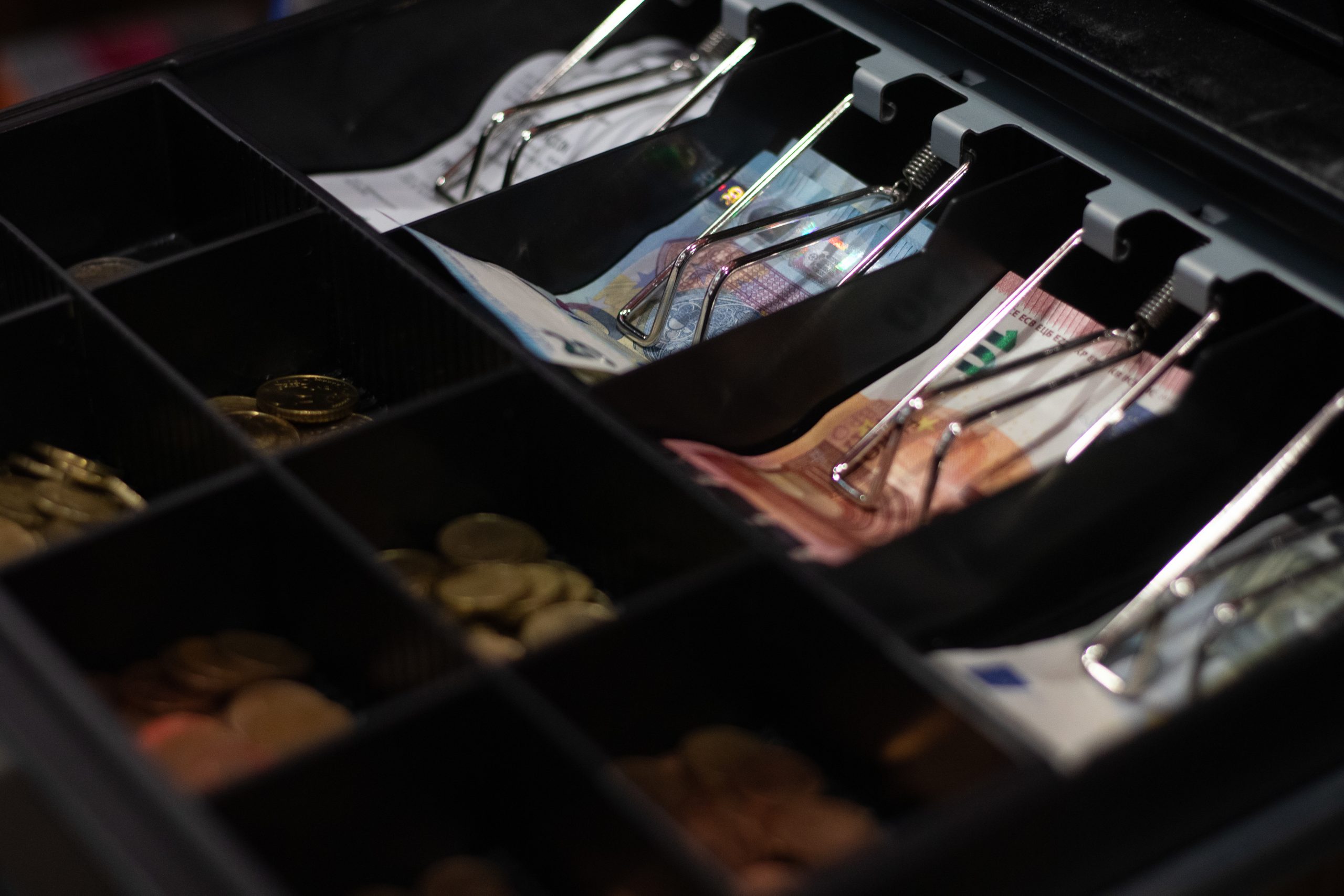

4. Organize the Cash Drawer
A tidy drawer improves transaction speed and minimizes errors.

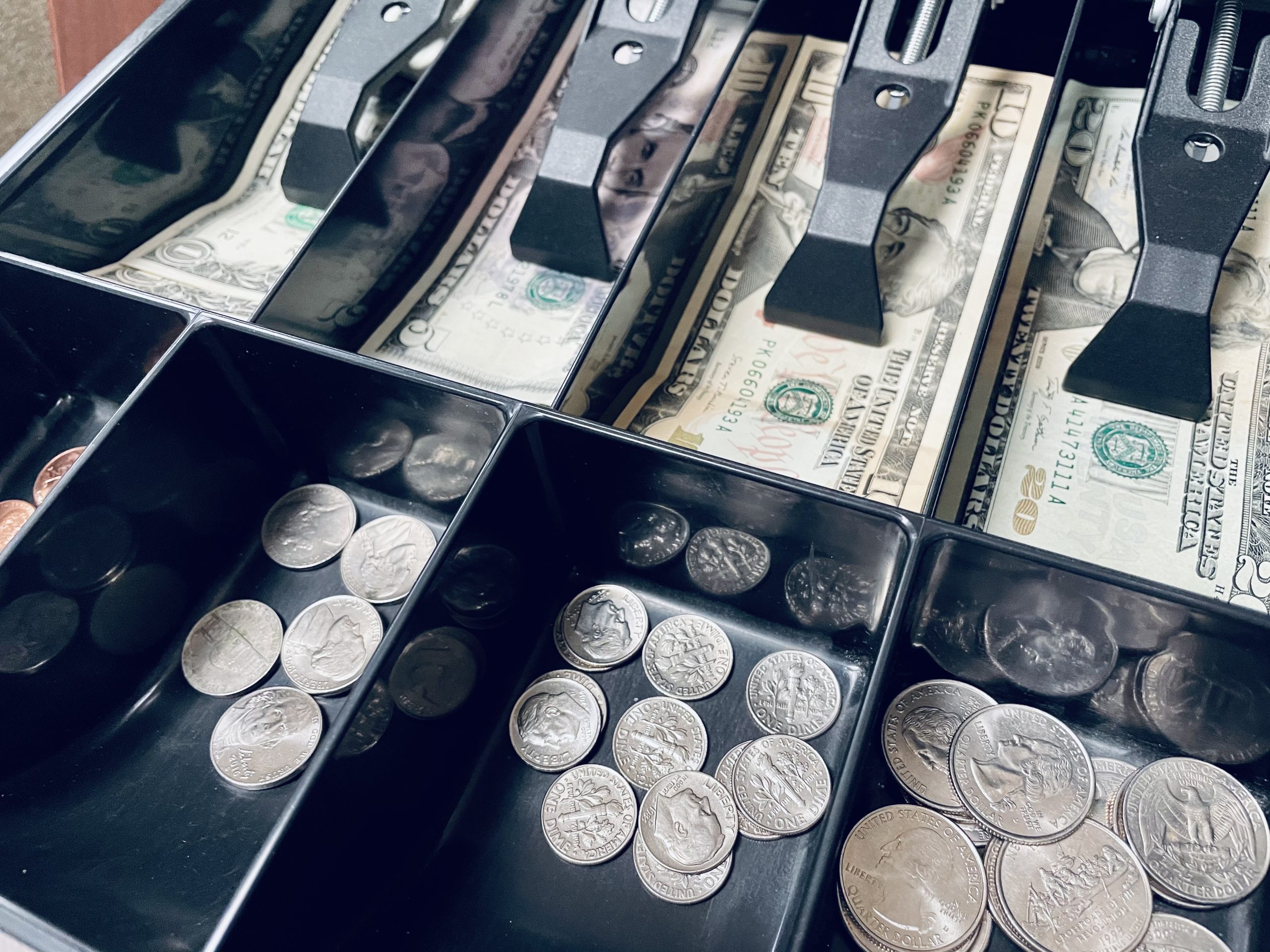

- Arrange bills in ascending order, from left (small denominations) to right (larger ones).
- Keep coins in front compartments for easy access.
- Use a drop box or safe to store large bills or excess cash throughout the day.
5. Test the Cash Drawer
Always test the full setup before starting business operations:
- Perform a test transaction using the POS system.
- Confirm that the receipt printer triggers the cash drawer to open.
- Verify that all cash movements are logged in your POS software for tracking.
Cash Drawer Security Tips
Security is just as important as functionality. Here’s how to keep your cash drawer secure:
- Assign POS permissions to restrict who can open the drawer.
- Count cash regularly to monitor for discrepancies.
- Implement a cash drop policy to store large amounts in a safe.
- Always lock the drawer when it’s not in use, especially during breaks or after hours.
Troubleshooting Common Issues
| Issue | Solution |
|---|---|
| Cash drawer not opening | Ensure the cable is securely connected. If using printer-driven, verify the printer is online and the receipt printed successfully. Restart and test again. |
| POS not detecting cash drawer | Check your POS hardware settings. Re-select the connection type and restart the system. Ensure the drawer model is compatible with your POS software. |
| Drawer opens unexpectedly | Disable the auto-open setting in the software for card-only transactions. Also, check if multiple triggers (like returns or refunds) are enabled by mistake |
Conclusion
Setting up your cash drawer properly ensures a smoother, more secure checkout experience. Whether you’re using a manual or POS-connected drawer, taking time to organize, connect, and configure your device helps maintain transaction accuracy and cashier efficiency. For enhanced performance, pair your drawer with reliable POS Hardware from Condor POS Solutions —designed for both security and speed.
Upgrade your checkout setup today and keep your cash handling seamless and secure.
